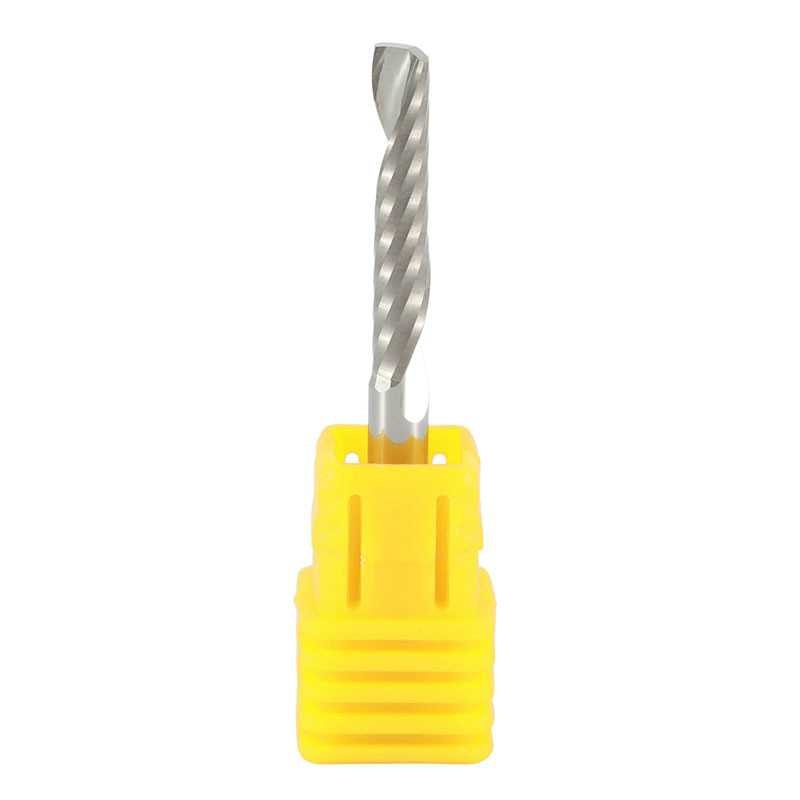

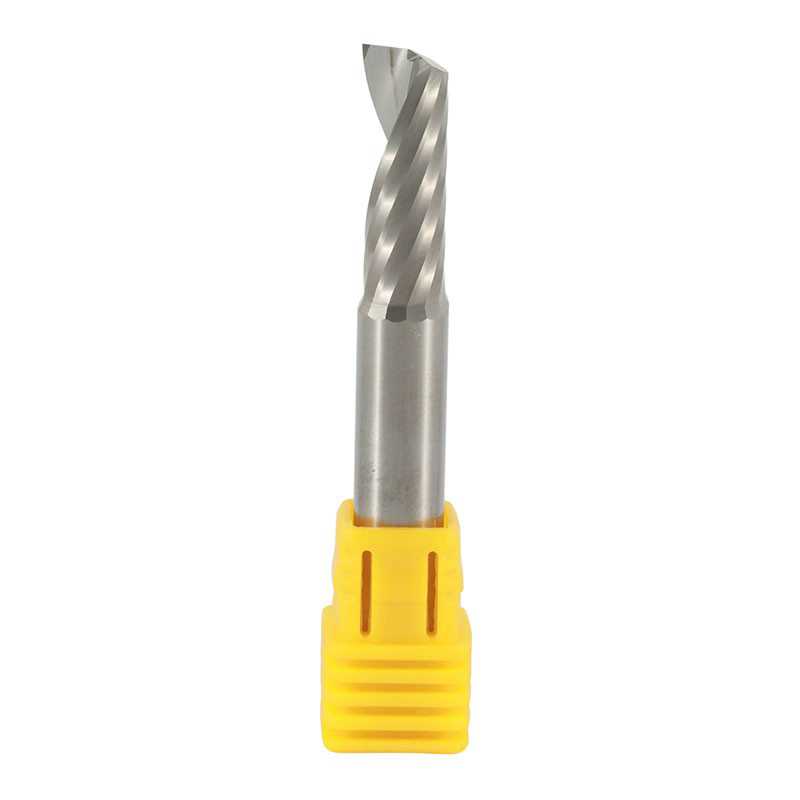

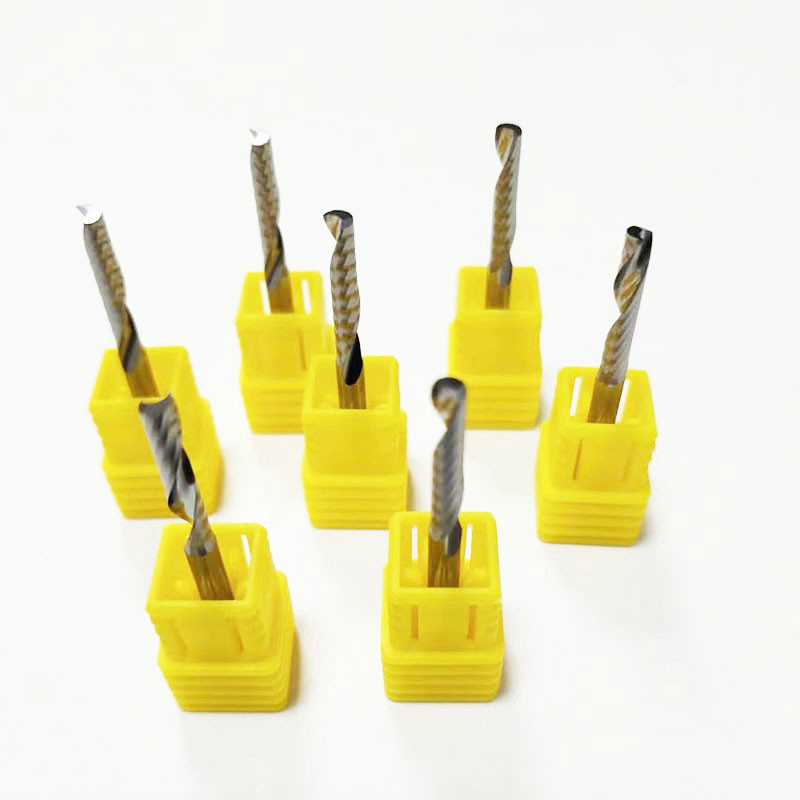

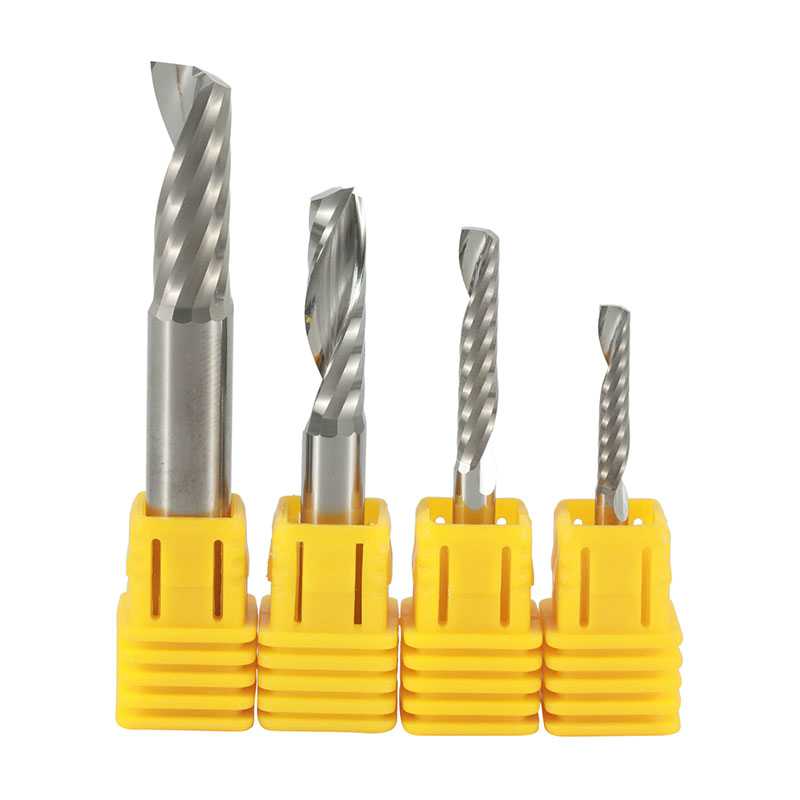

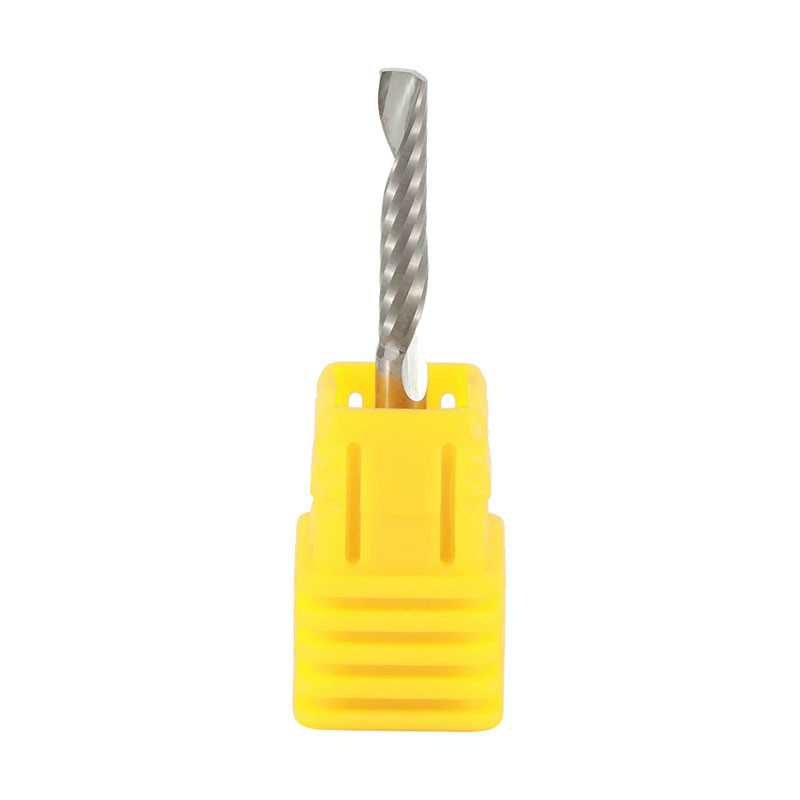

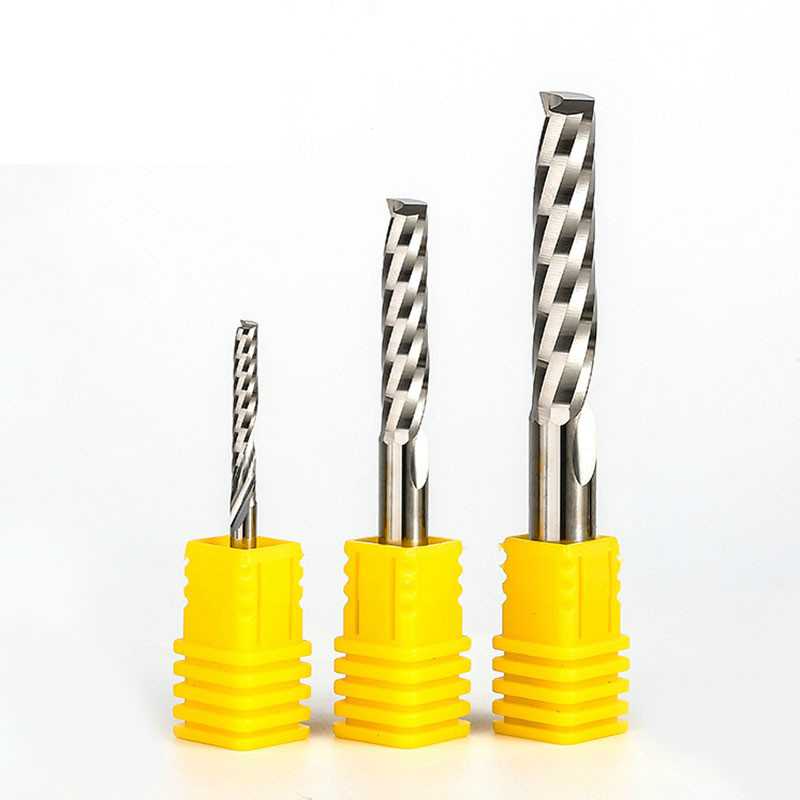

Carbide Single Flute End Mills

照片

Specification

Code No.	d Dia.	I Length of Cut	D Shank Dia.	O.A.L
HJ-SEC-1.0 3.175 385	1	44624	3.175	38.5
HJ-SEC-1.5 3.175 385	1.5	38511	3.175	38.5
HJ-SEC-2.0 3.175 385	2	6/8/10/12	3.175	38.5
HJ-SEC-2.0 3.175 385	2	6/8/10/12	3.175	38.5
HJ-SEC-2.0 3.175 385	2	15/17	3.175	38.5
HJ-SEC-2.5 3.175 385	2.5	39733	3.175	38.5
HJ-SEC-2.5 3.175 385	2.5	15/17	3.175	38.5
HJ-SEC-3.175 3.175 385	3.175	8/12/15/17	3.175	38.5
HJ-SEC-3.175 3.175 450	3.175	22	3.175	45
HJ-SEC-3.175 3.175 500	3.175	25	3.175	50
HJ-SEC-4.0 4 450	4	12/17/22	4	45
HJ-SEC-4.0 4 500	4	25	4	50
HJ-SEC-4.0 4 500	4	28	4	50
HJ-SEC-4.0 4 550	4	32	4	55
HJ-SEC-5.0 6 500	5	17/22	6	50
HJ-SEC-6.0 6 500	6	17/22	6	50
HJ-SEC-6.0 6 500	6	25	6	50
HJ-SEC-6.0 6 550	6	28	6	55
HJ-SEC-6.0 6 600	6	32/35	6	60
HJ-SEC-8.0 8 500	8	17/22	8	50
HJ-SEC-8.0 8 600	8	28	8	60
HJ-SEC-8.0 8 750	8	32	8	75
HJ-SEC-8.0 8 850	8	52	8	85
HJ-SEC-1010 750	10	25	10	75
HJ-SEC-1010 750	10	32	10	75
HJ-SEC-1010 750	10	45	10	75
HJ-SEC-1010 100	10	52	10	100
HJ-SEC-1212 075	12	22/25	12	75
HJ-SEC-1212 075	12	32/35	12	75

Material to be

■ Most Suitable ■ Suitable

Free Cutting Copper, Structural Steel, Elastic Steel	≤250HB
Free Cutting Copper, Structural Steel, Elastic Steel	250-350HB
Infiltrated Steel, Tempered Steel	≤30HRC
Tool Steel	≤45HRC
	45-55HRC	■
	55-60HRC
	≥60HRC
Stainless Steel
Titanium
High Temperature
Cast Stainless Steel
Cast Iron	≤180HB
Cast Iron	≥180HB
Aluminum, Aluminum Alloy, Copper, Copper Alloy, Others		■

辅料

HRC 55 螺旋刃铰刀（内冷）

HRC 55 螺旋刃铰刀（外冷）

HRC 55 直刃铰刀（内冷）

HRC 55 直槽铰刀（外冷）

Design: Large flutes, mirror polished
Material/Coating: Superfine Carbide / None
Application: Professional processing of acrylic, PVC, MDF, multi-layer boards, etc., no polishing, non-stick tool.
