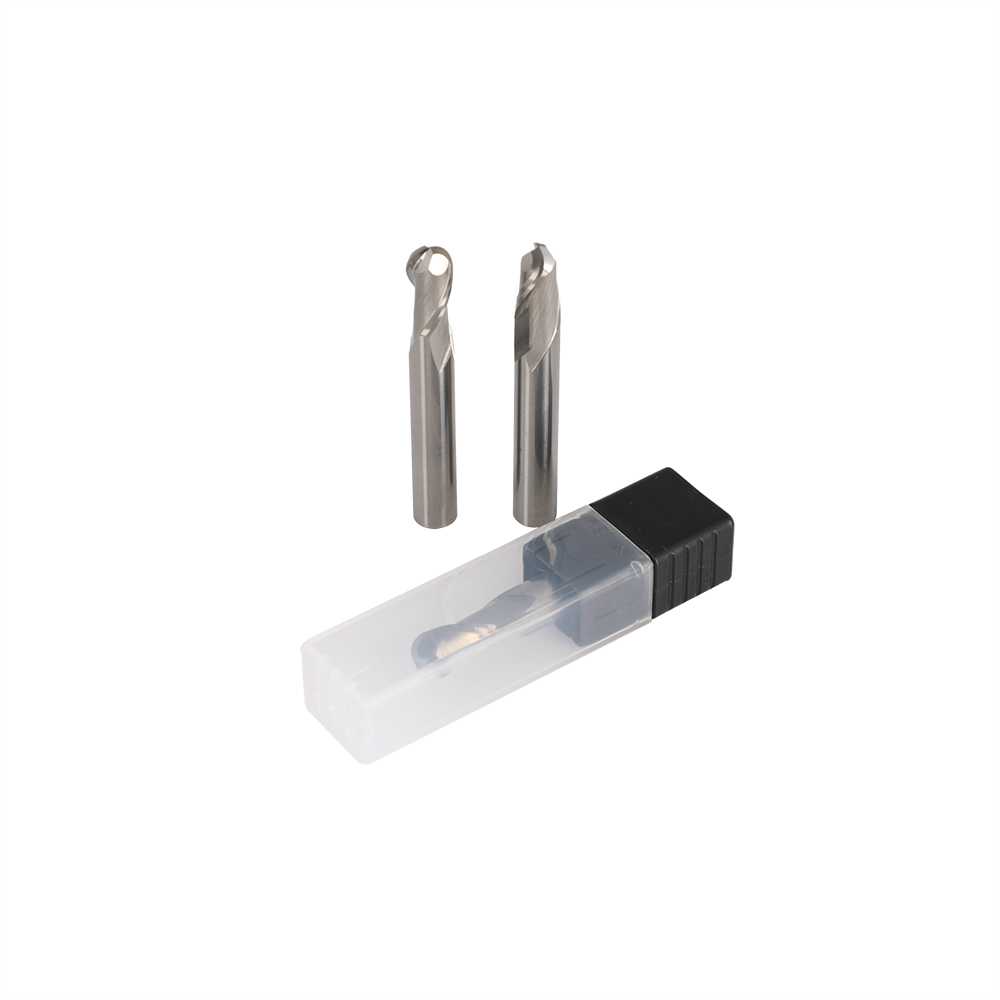

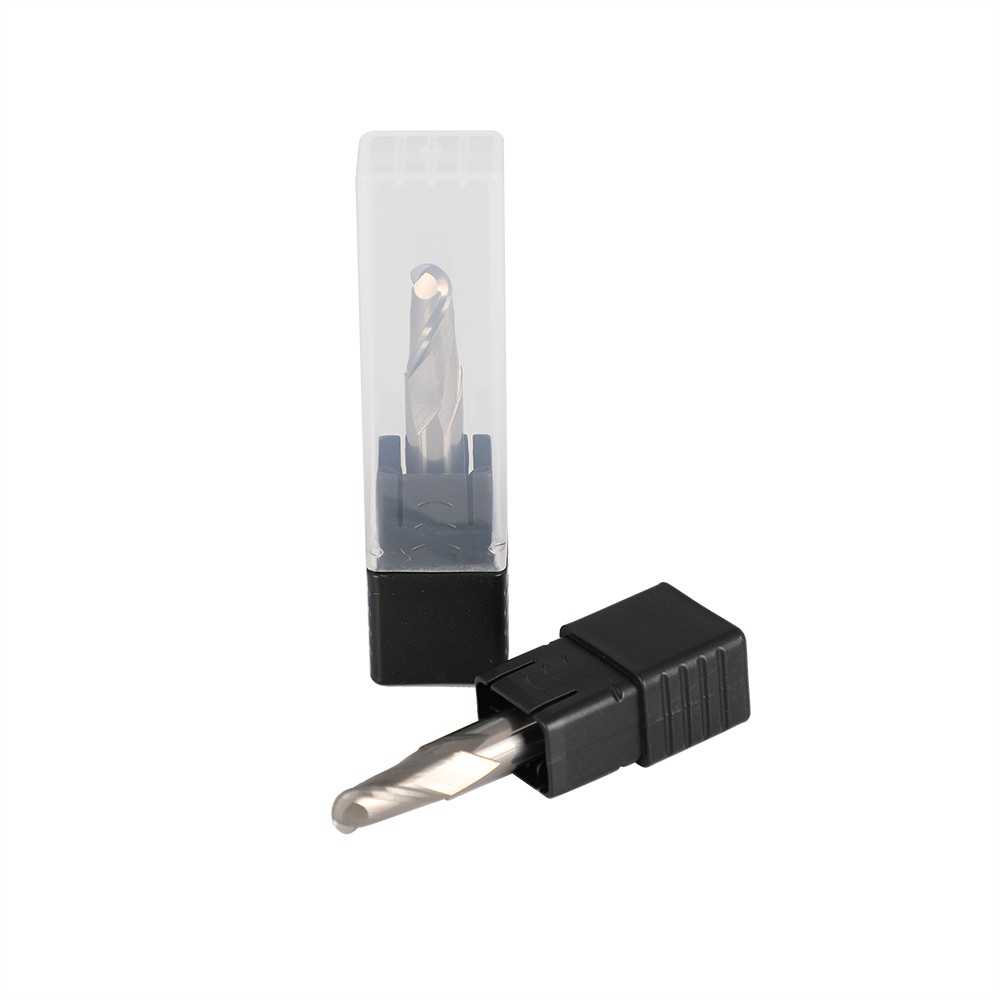

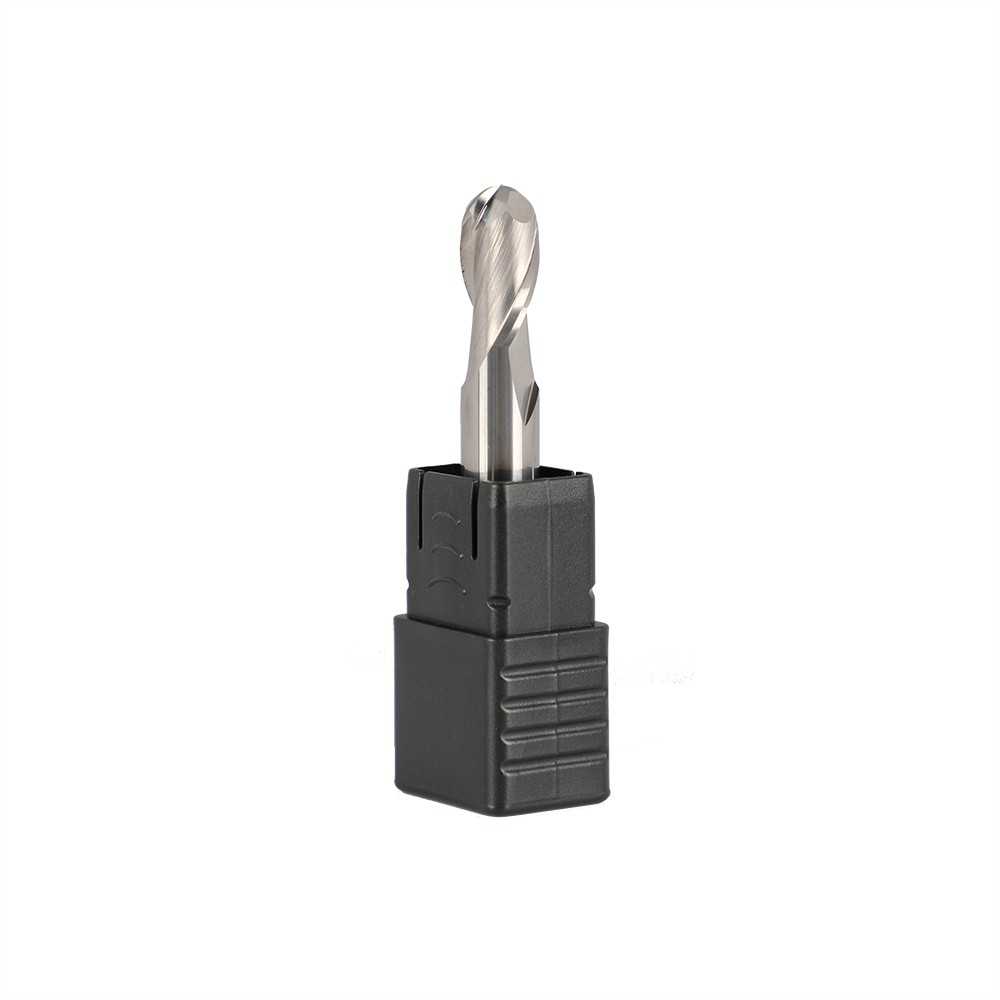

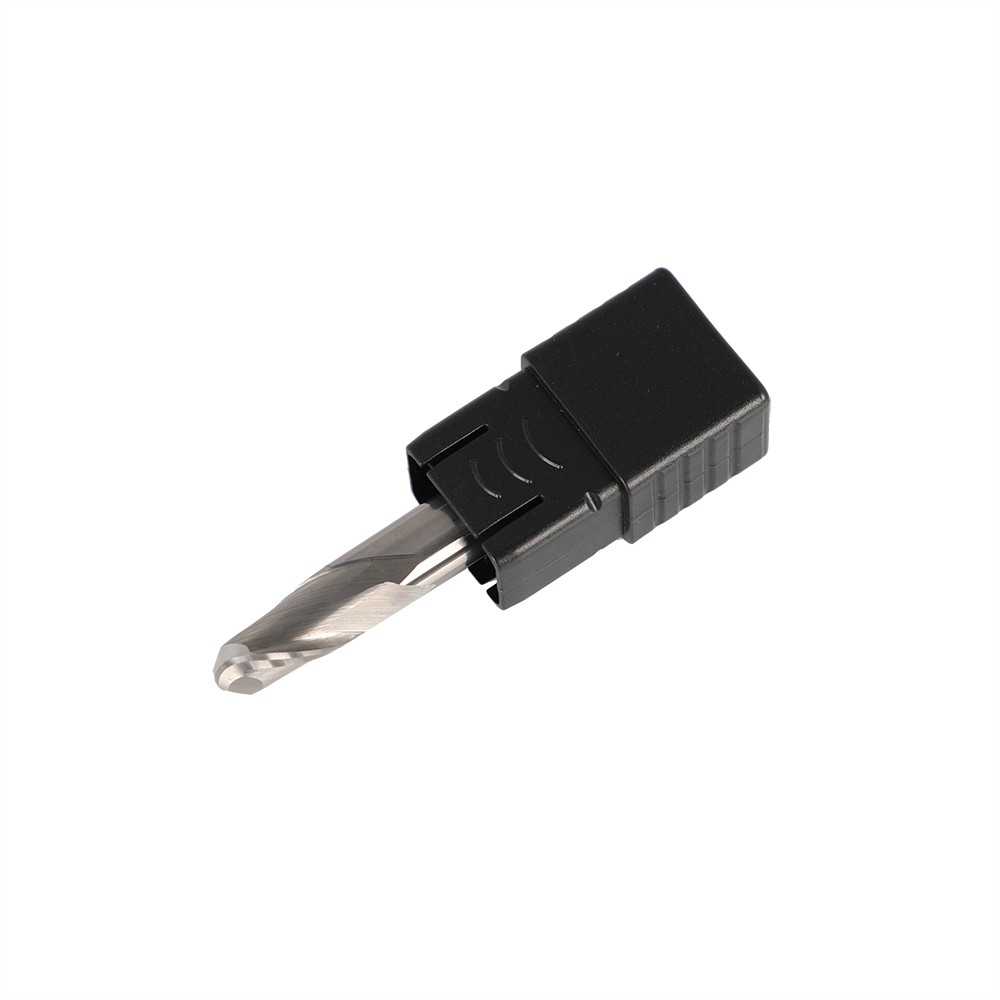

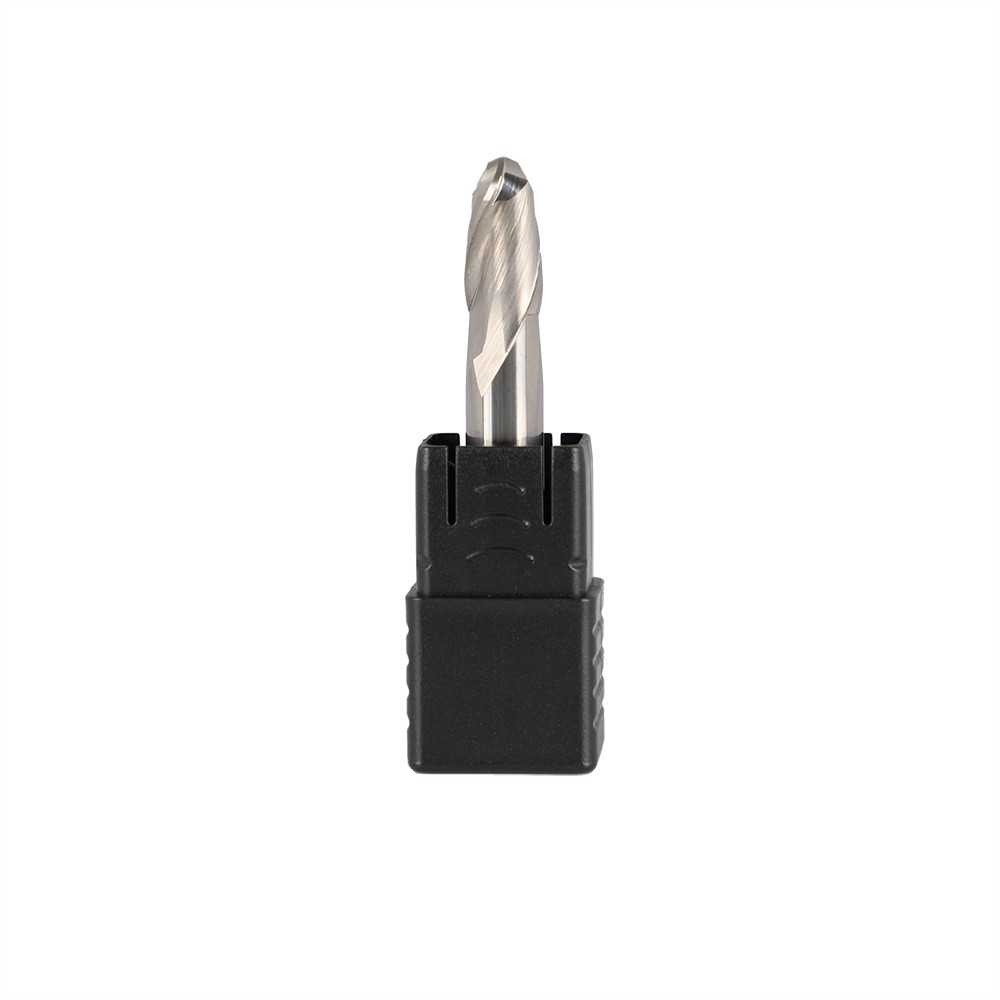

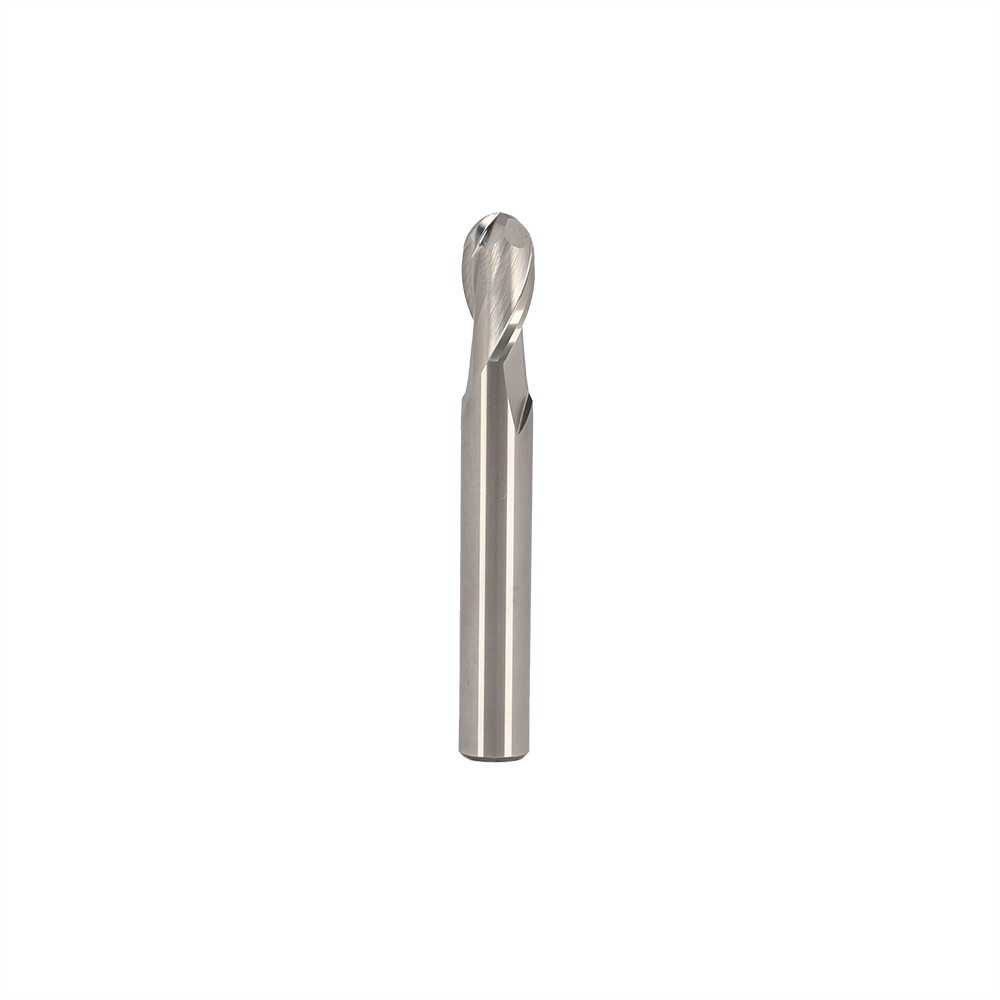

Aluminum ball nose

照片

Specification

Code No.	d Dia.	I Length of Cut	D Shank Dia.	O.A.L
HJ-ABE500-1004050	1	4	4	50
HJ-ABE500-1504050	1.5	4	4	50
HJ-ABE500-2004050	2	4	4	50
HJ-ABE500-2504050	2.5	4	4	50
HJ-ABE500-3004050	3	4	4	50
HJ-ABE500-3003050	3	3	4	50
HJ-ABE500-3504050	3.5	4	4	50
HJ-ABE50CM004050	4	4	4	50
HJ-ABE500-5006050	5	6	6	50
HJ-ABE500-5005050	5	5	6	50
HJ-ABE500-6006050	6	6	6	50
HJ-ABE500-8008060	8	8	8	60
HJ-ABE500-1010075	10	10	10	75
HJ-ABE500-1212075	12	12	12	75
HJ-ABE500-1414100	14	14	14	100
HJ-ABE500-1616100	16	16	16	100
HJ-ABE500-1818100	18	18	18	100
HJ-ABE500-2020100	20	20	20	100
HJ-ABE500-3003075	3	3	4	75
HJ-ABE500-3004075	3	4	4	75

Lengthened

Code No.	d Dia.	I Length of Cut	D Shank Dia.	O.A.L
HJ-ABE500-4004075	4	4	4	75
HJ-ABE500-6006075	6	6	6	75
HJ-ABE500-8008075	8	8	8	75
HJ-ABE500-3004100	3	4	4	100
HJ-ABE500-4004100	4	4	4	100
HJ-ABE500-5005100	5	5	6	100
HJ-ABE500-5006100	5	6	6	100
HJ-ABE500-6006100	6	6	6	100
HJ-ABE500-8008100	8	8	8	100
HJ-ABE500-1010100	10	10	10	100
HJ-ABE500-1212100	12	12	12	100
HJ-ABE500-6006150	6	6	6	150
HJ-ABE500-8008150	8	8	8	150
HJ-ABE500-1010150	10	10	10	150
HJ-ABE500-1212150	12	12	12	150
HJ-ABE500-1414150	14	14	14	150
HJ-ABE500-1616150	16	16	16	150
HJ-ABE500-1818150	18	18	18	150
HJ-ABE500-2020150	20	20	20	150

Material to be

■ Most Suitable ■ Suitable

Free Cutting Copper, Structural Steel, Elastic Steel	≤250HB
Free Cutting Copper, Structural Steel, Elastic Steel	250-350HB
Infiltrated Steel, Tempered Steel	≤30HRC
Tool Steel	≤45HRC
	45-55HRC
	55-60HRC
	≥60HRC
Stainless Steel
Titanium
High Temperature
Cast Stainless Steel
Cast Iron	≤180HB
Cast Iron	≥180HB
Aluminum, Aluminum Alloy, Copper, Copper Alloy, Others		■

辅料

HRC 55 螺旋刃铰刀（内冷）

HRC 55 螺旋刃铰刀（外冷）

HRC 55 直刃铰刀（内冷）

HRC 55 直槽铰刀（外冷）

Design: 2/3 flutes, helical flute, right cut, cylindrical shank
Solid carbide material / Coating: Solid-Carbide micro grain / None
Application: Suitable for aluminium and non-ferrous metals.
